Analysis
Analysis, Evaluation & Testing
Extensive Analysis and Results Under Special Conditions
We have advanced our analysis technology through our experience under diverse conditions in the field of aersopace engineering. We have proven the compatibility of our high-precision analysis technology even in zero gravity or vacuums where the environment makes it difficult to conduct tests. We, therefore, can handle any project regardless of field, product, or conditions.
―CAE Analysis Solutions from CHUO ENGINEERING
Reduced Design Time
CAE enables faster development of optimal designs by breaking the cycle of trial, evaluation, and redesign, significantly reducing both development time and overall cost.
Defect Analysis & Solutions
CAE helps estimate the causes of failures, such as operational breakage. By considering countermeasures early, root causes can be quickly identified, and potential problems prevented, improving product quality.
Coupled Analysis
Drawing on our extensive experience, we can develop effective strategies for a broad range of coupled analyses when appropriate, including thermal‑structural, fluid‑vibration, and mechanism‑structural coupling. Coupled analysis addresses problems in which multiple physical phenomena interact.
Optimized Design
Using our proprietary AI‑based optimization approach, we derive lightweight structures with optimized stiffness. The resulting complex geometries can be realized through metal additive manufacturing, delivering performance equivalent to forget parts, even for parts difficult to produce by conventional machining.
Feature
-
feature 01
Frequency Response Analysis
Description Rack frequency response analysis
Analysis Software MSC Nastran

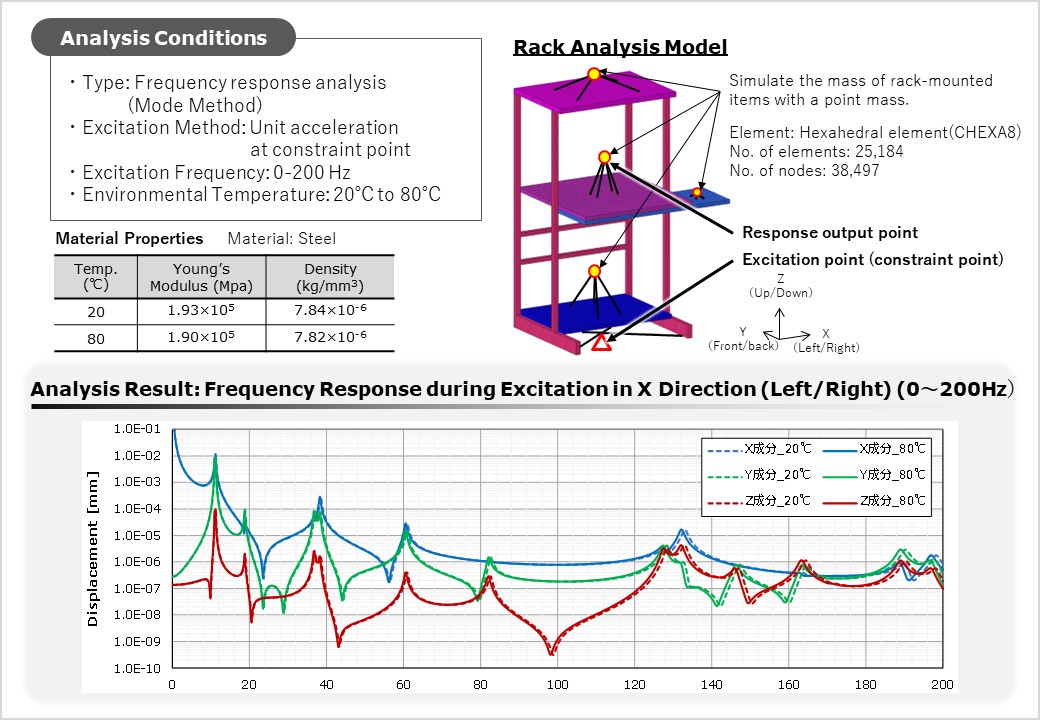

Overview Determine the frequency response when applying vibrations in the front-back, left-right, and up-down directions to a rack equipped with equipment.
-
feature 02
Thermal/Fluid Analysis ①
Description Mix of two types of fluid with a static mixer
Analysis Software Fluent

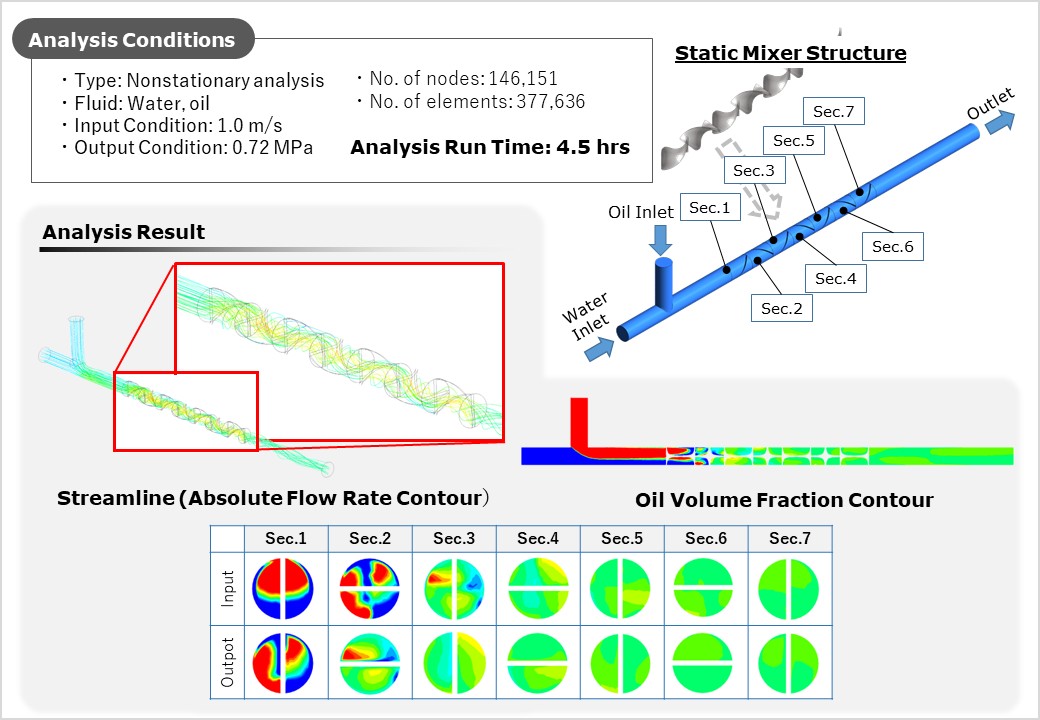

Overview Determine the mixing condition when two different types of fluid pass through a static mixer.
-
feature 03
Thermal/Fluid Analysis ②
Description Check the fluid film by spraying
Analysis Software scFlow

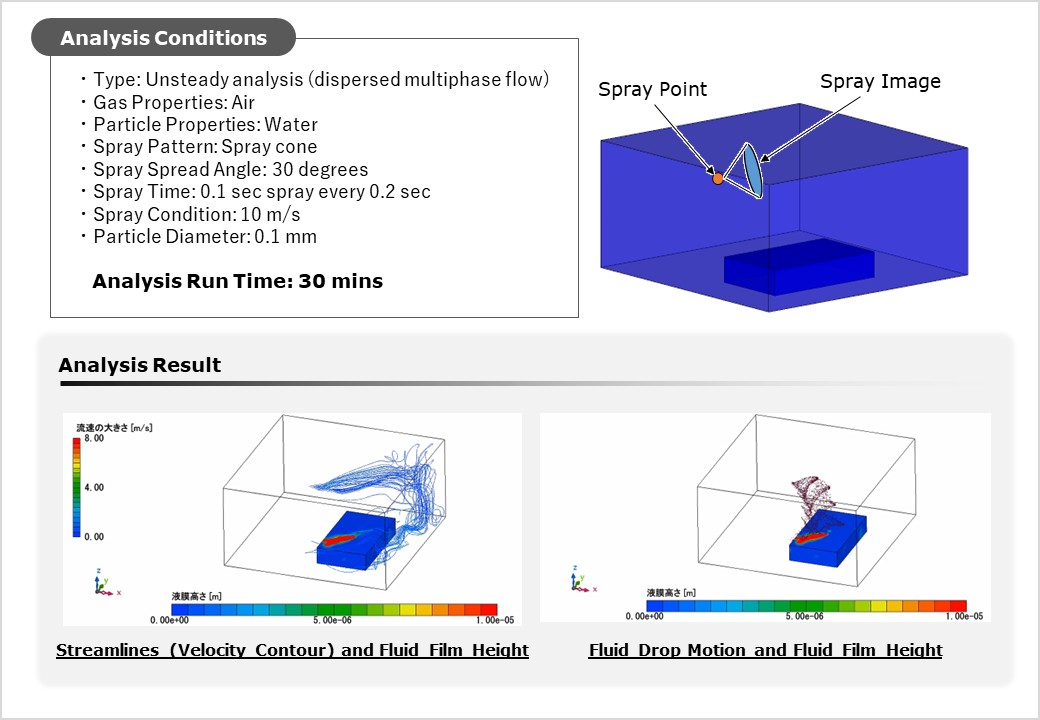

Overview Evaluate the thickness of a fluid film when a fluid is sprayed on an object.
-
feature 04
Particle Analysis
Description Soil particle parameter identification
Analysis Software EDEM

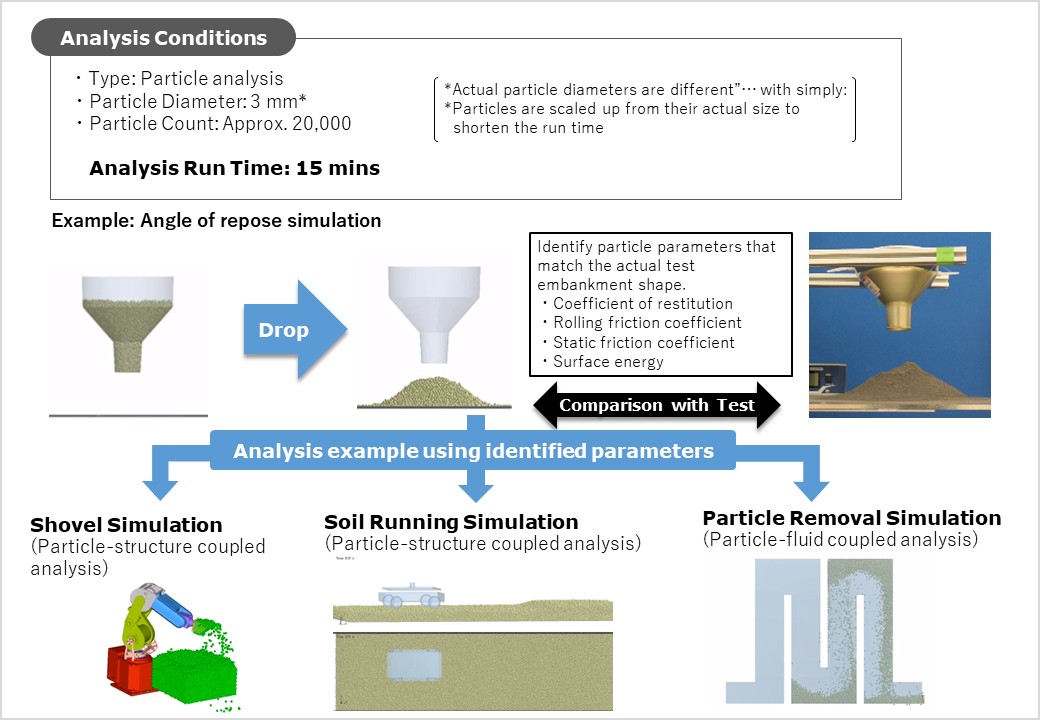

Overview By simulating soil parameter tests, identify particle parameters.
Based on these parameters, create and simulate soil field models.
-
feature 05
Structure Analysis
Description Support vibration by propeller
Analysis Software ADAMS

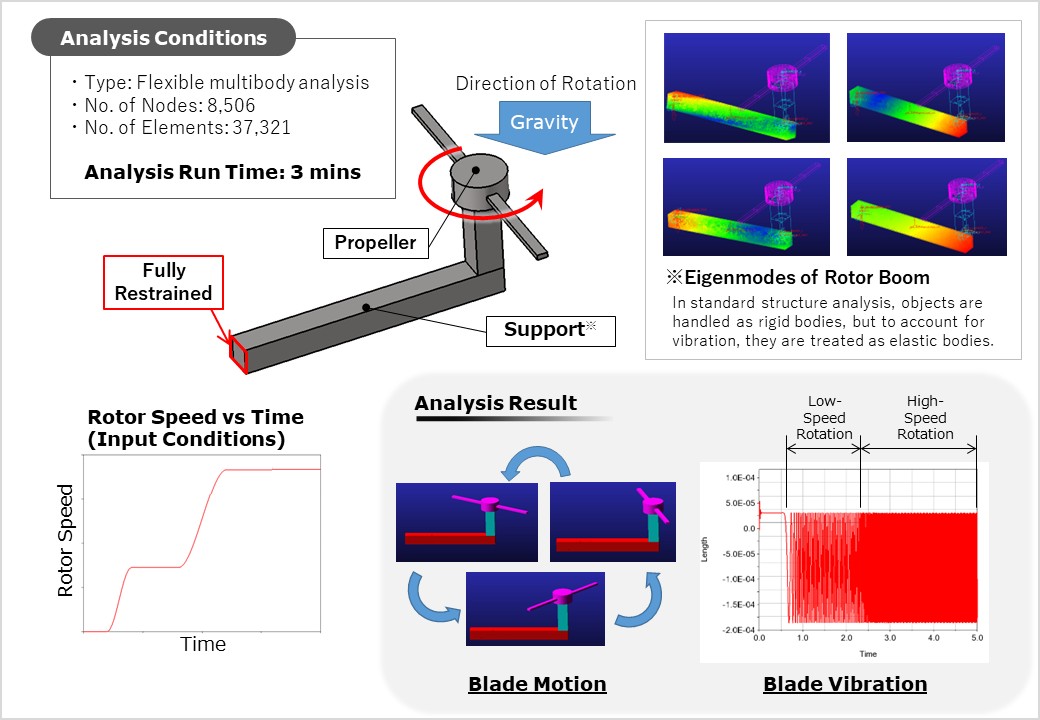

Overview Analyze the vibration of the boom as the rotor spins.
-
feature 06
Specific Absorption Rate Analysis
Description Specific absorption rate analysis (SAR) using a cell phone
Analysis Software Feko

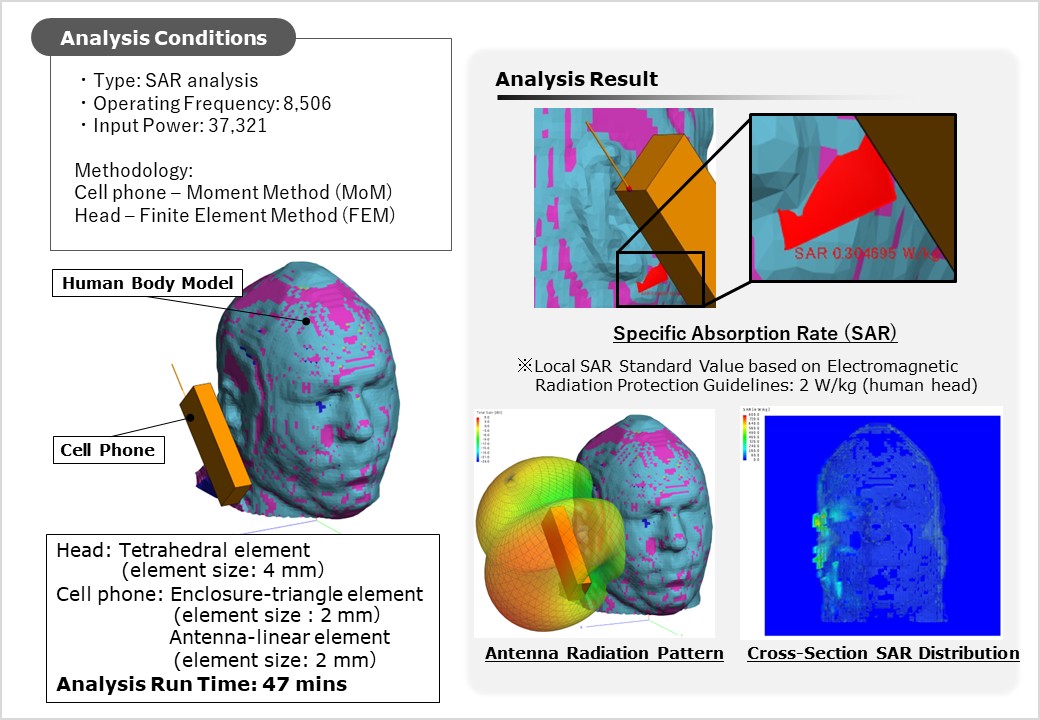

Overview Check the specific absorption rate (SAR) of a human head during call.
-
feature 07
Radiation Emission Analysis
Description Inverter EMI (radiation emission) analysis
Analysis Software Feko

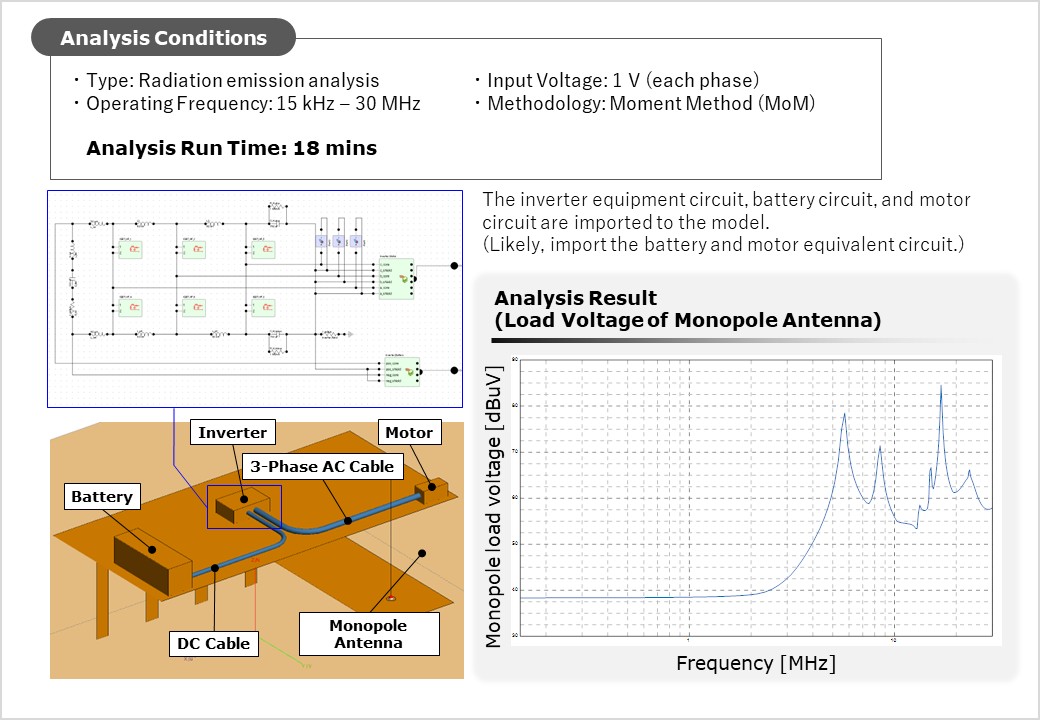

Overview Determine the radiated electromagnetic noise from the module, which has the inverter, battery, and motor connected and is using a monopole antenna.
-
feature 08
Collision Analysis
Description Behavior of a high-speed colliding flying object and plate
Analysis Software Abaqus/Explicit

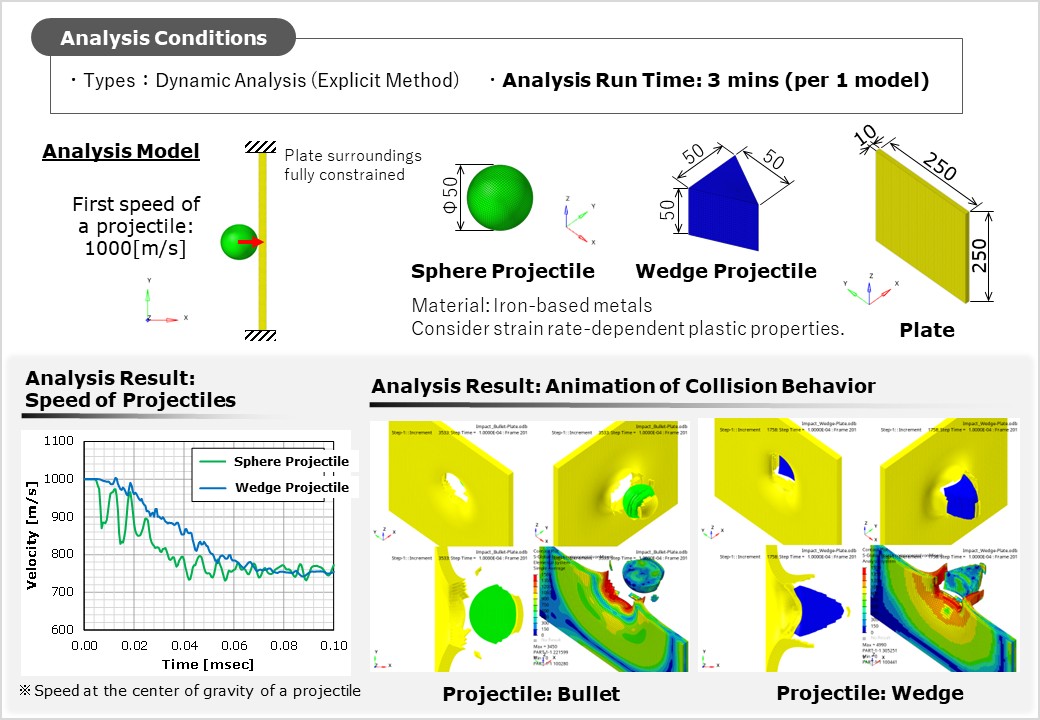

Overview Determine the behavior of the projectiles after impacting a plate at high speed.
Use the projectiles and the plate with the same material and consider a damage-progression failure model.
-
feature 09
Topology Optimization Analysis
Description Optimal design of a fitting metal through topology optimization analysis
Analysis Software OptiStruct2019

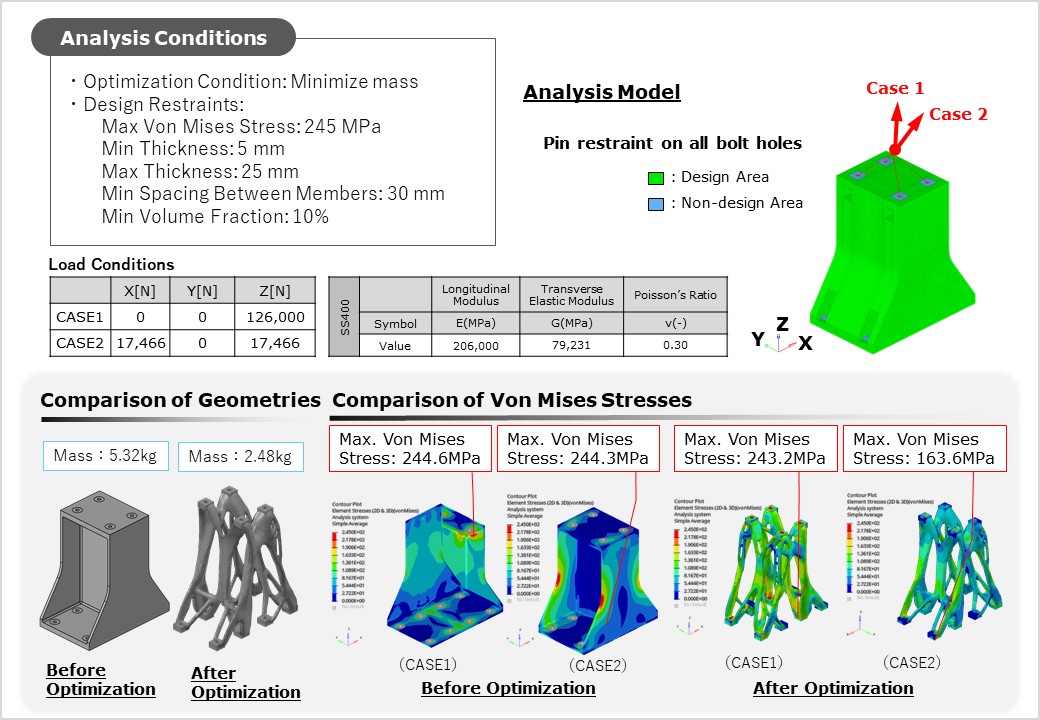

Overview A design of a fitting is weight-reduced, while maintaining strength requirements, using topology optimization.
-
feature 10
Lattice Structure Optimization Analysis
Description Structural weight reduction analysis using lattice structure optimization
Analysis Software Inspire

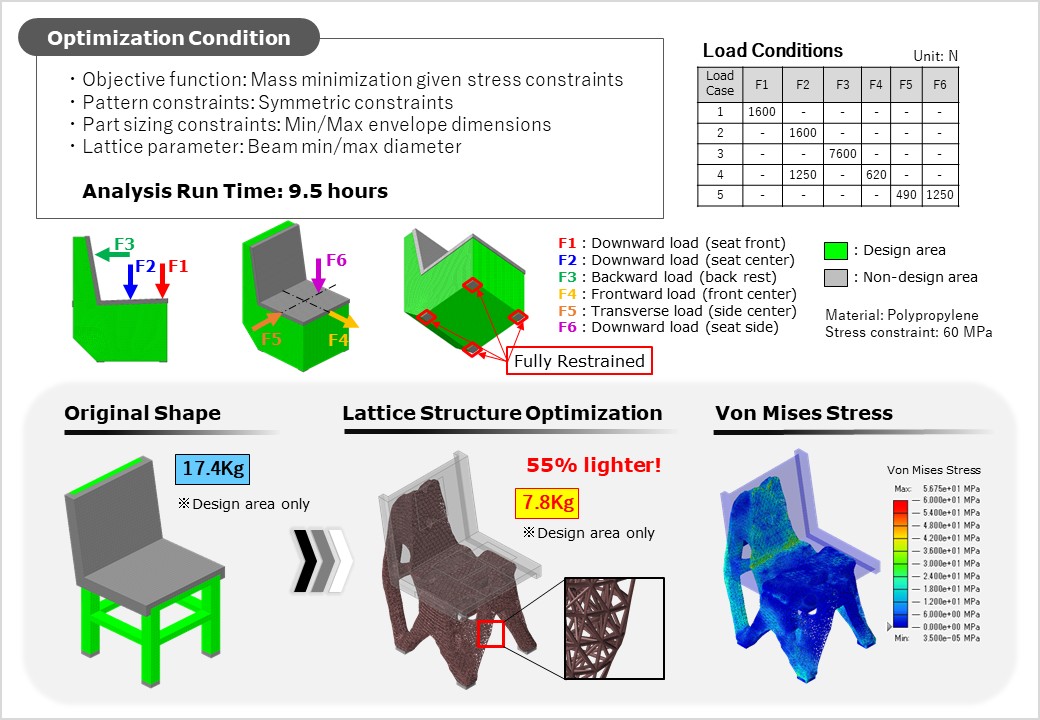

Overview Leverage advanced lattice structure optimization analysis to generate innovative design solutions that significantly reduce the weight of existing chair structures.
-
feature 11
Topography Optimization Analysis
Description Optimal design of beads through topography optimization analysis
Analysis Software OptiStruct2019

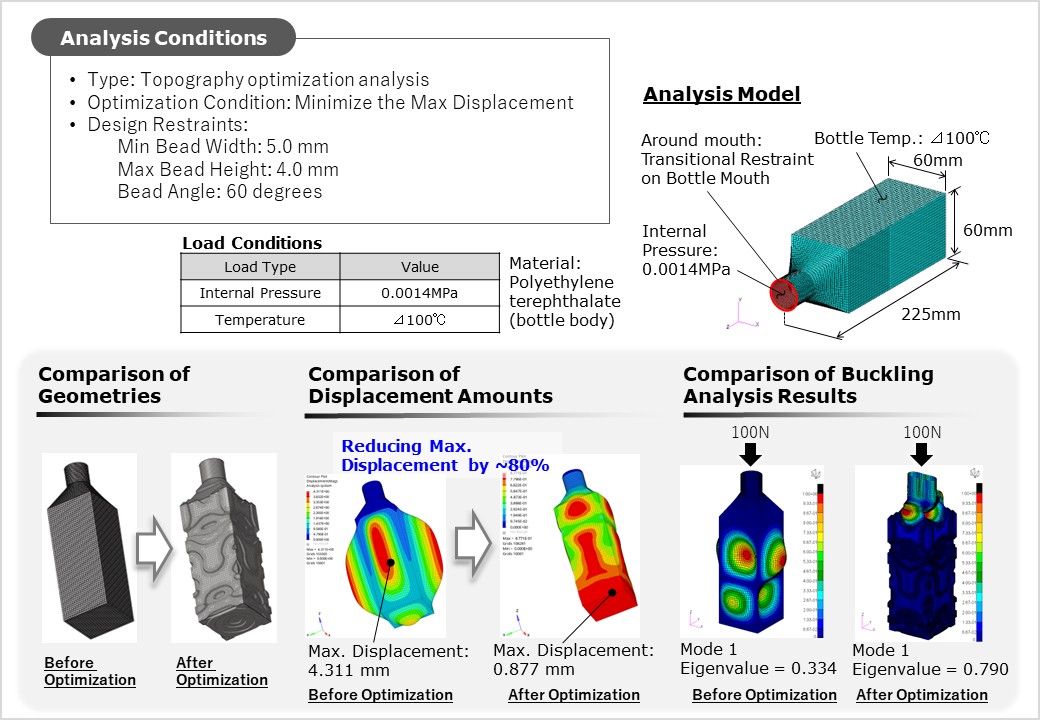

Overview An improved bottle design is determined using topological optimization by representing the bottle with a bead mesh.
-
feature 12
Composite Thermal Displacement Analysis
Description Thermal displacement analysis upon composite molding
Analysis Software Abaqus/Standard

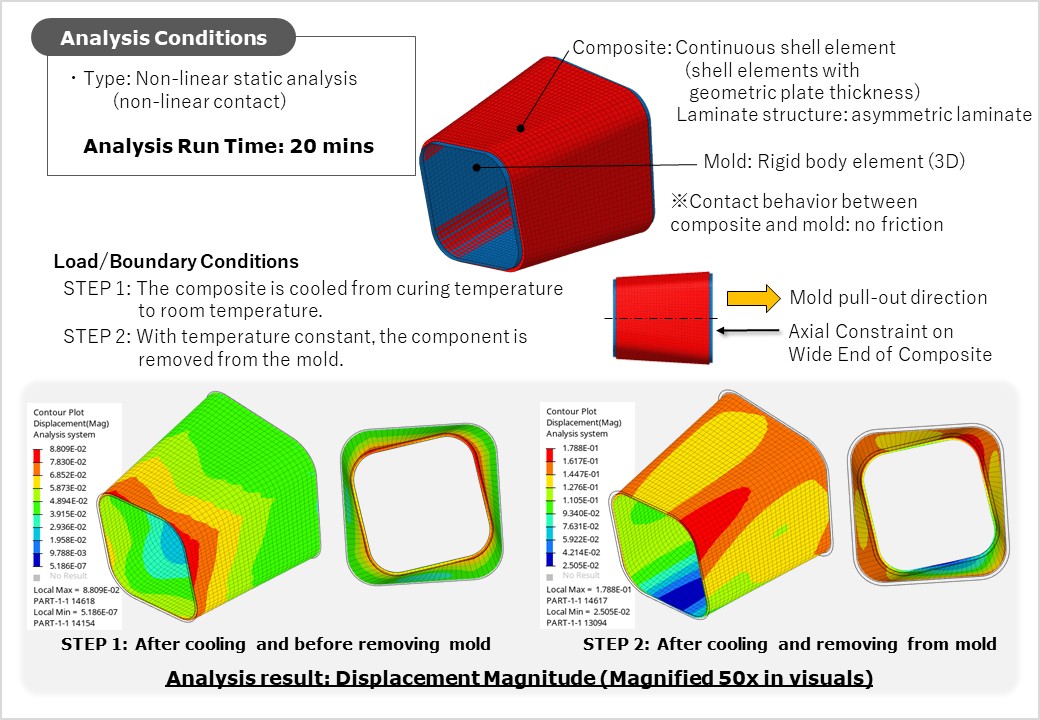

Overview Evaluate the displacement amount of thermal displacement caused by temperature change during molding because of composite anisotropy.
-
feature 13
Structure-Mechanism Coupling Analysis
Description Stress analysis during robot arm operation
Analysis Software MotionSolve-Optistruct

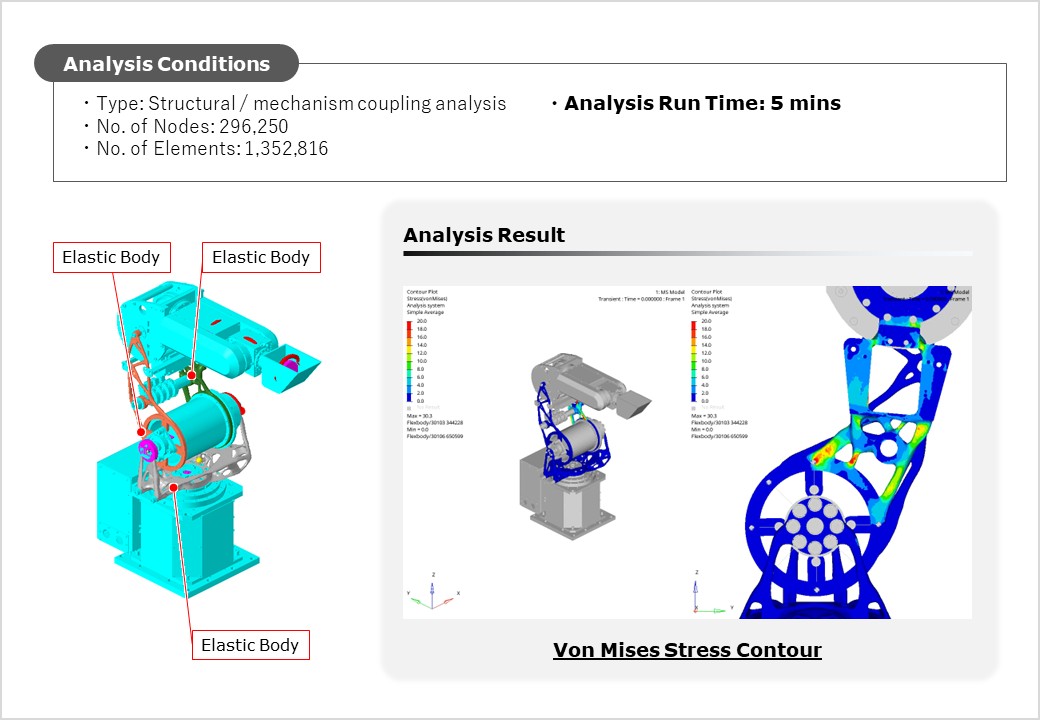

Overview Evaluate the stress in the optimized components of a robot arm as it operates.
-
feature 14
Fluid-Structure Coupled Analysis
Description Behavior of droplet dropping on or colliding a flat plate
Analysis Software Abaqus/Explicit

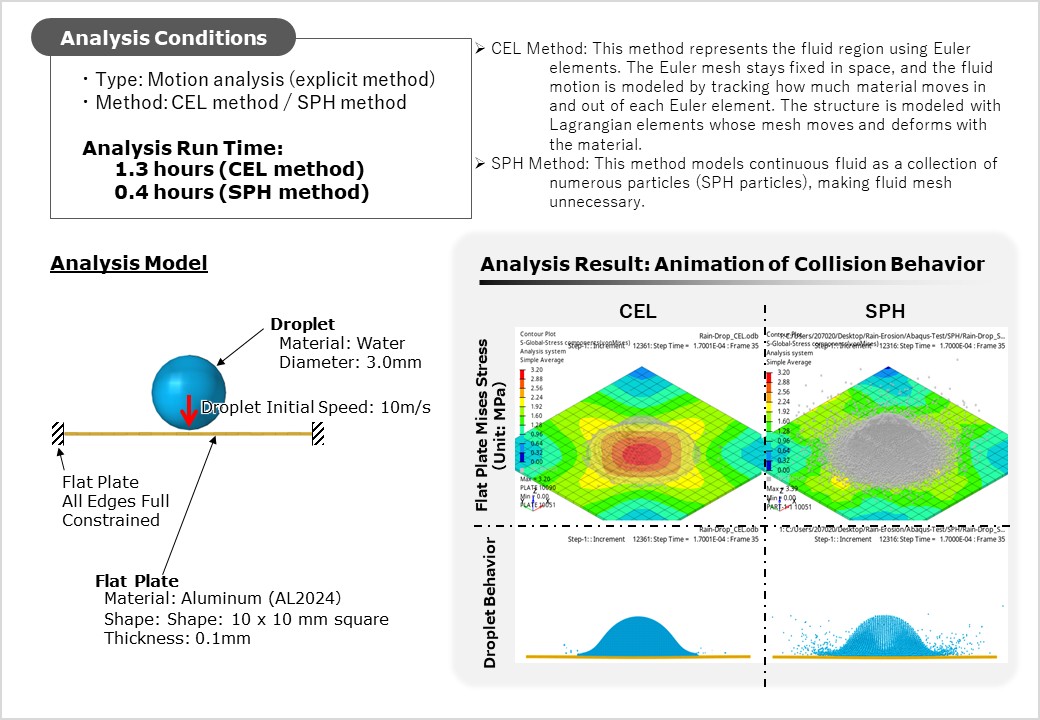

Overview Determine the behavior and stress generated when a droplet falls on a flat plate using both the Coupled Euler-Lagrange (CEL) method and the Smoothed Particle Hydrodynamics (SPH) method.
-
feature 15
Thermal/Fluid Particle Analysis
Description Mix of fluid and particles with a static mixer
Analysis Software AcuSolve/EDEM

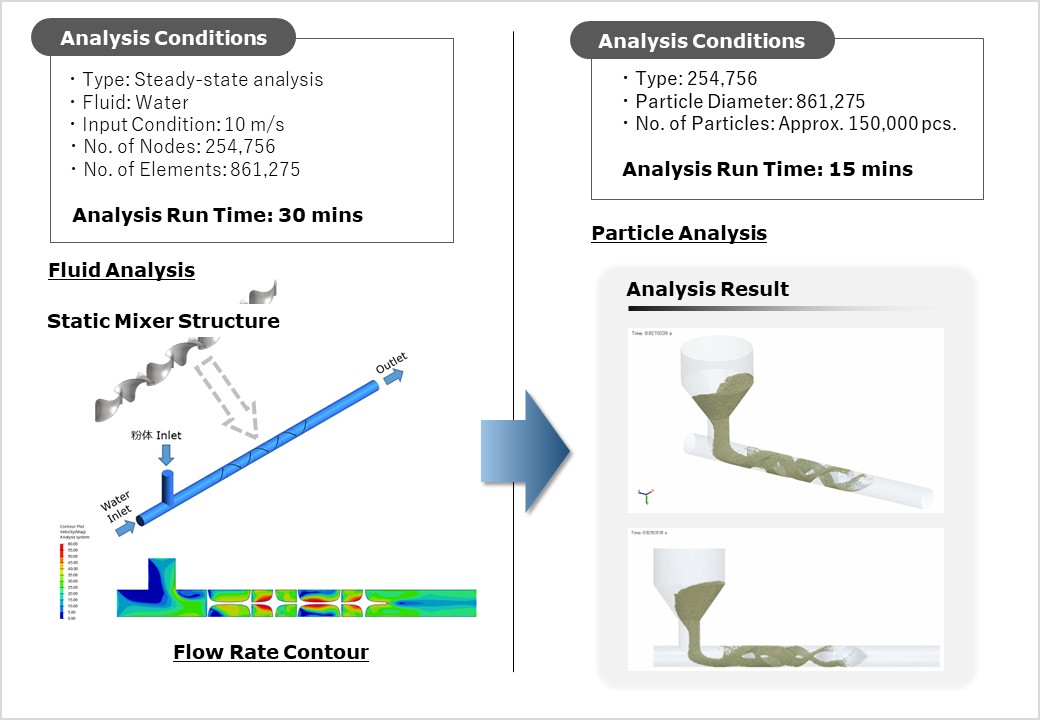

Overview Determine the mixing condition when particles are mixed with water in a static mixer.
